3D model of 7 inch LCD TFT FPV screen

As I started to prepare LCD screen for control my drone i would like to put video reciever on the 7″display.
As original plastic cover display looks ugly – i would like to de-bezel it and 3D print my own cover.

Donwload here – 3D model of de-bezeled display with a PCB

Buy on aliexpress with a litle cents for me

•Ultra Bright   500 CD/M⊃2;   High-Definition Display
•Supports Composite Video RCA Input
•Display Resolution up to 1024*600 Pixels
•16:9 or 4:3 Adjustable Display Ratio
Designed for FPV Application
Application to FPV or Wireless Composite Video Camera in making Movies.

Panel Size: 7″ widescreen
Brightness: 500 CD/M⊃2;
Resolution: 1024 x 600
Aspect Ratio: 16:9 & 4:3
Contrast Ratio: 500:1
Light Source: LED Backlight
Surface Treatment: Anti-Glare
Viewing Angle: 70°/70°,50°/70° (L/R,U/D)
Inputs: Compostie 2 Video RCA Input
Input Voltage: DC 7.4~35V (suggest 3S battery)
Input Current: DC 0.5A-1.5A
Power Consumption: ≤8W Watts
Mount: “1/4”-20 Thread and VESA mounting socket(75mm)
Storage Temperature: -20°C to 70°C
Operating Temperature: -10°C to 60°C
Size: 185.5mm x 122mm x 32mm

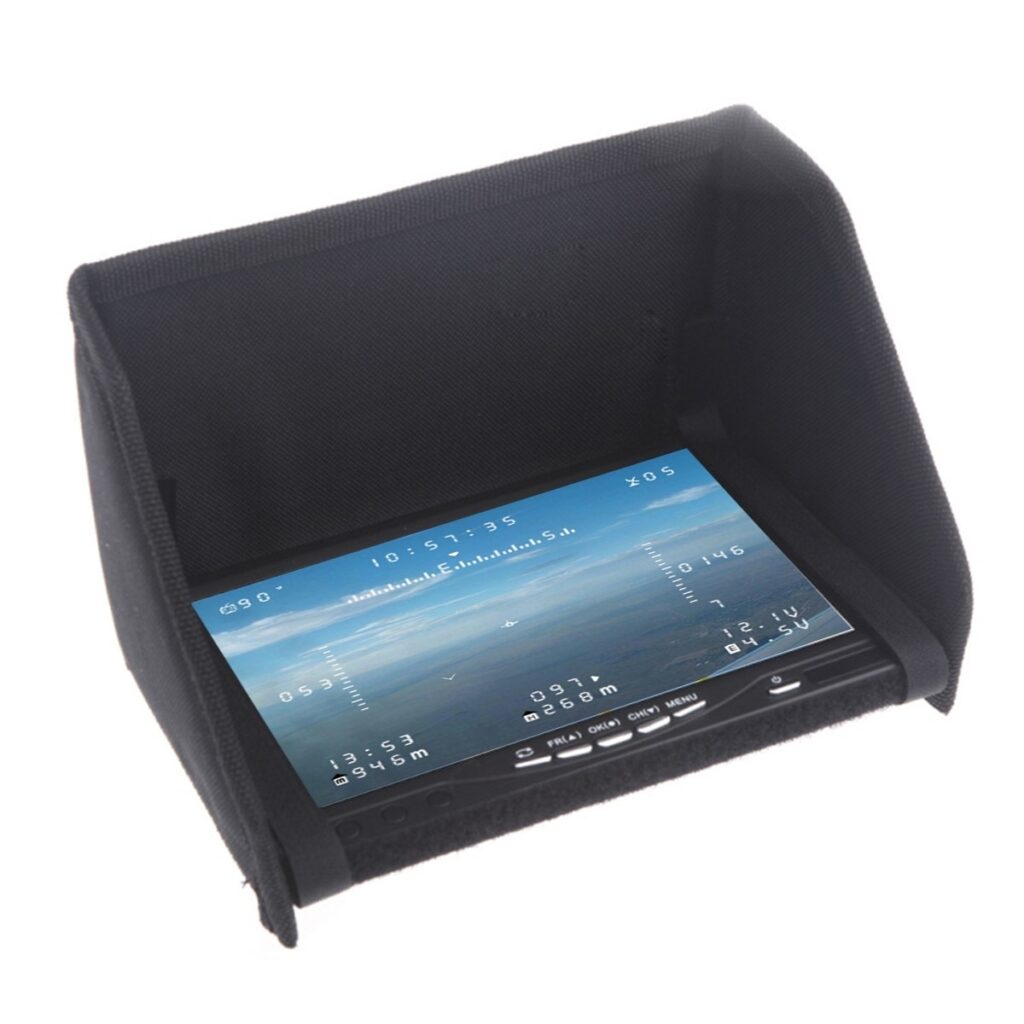

Weight: 450gPackage including: 1 x 7 inch FPV monitor with cables ( battery and remote control is not included)

1 x Sun hood  (send by your choice)

1 x Glass fiber remote control holder (send by your choice)
